Seaory R600M Card Printer
Explore the features of Seaory R600
As a leader in China’s card printer market, We provide the best quality, service and customer experience.Lorem ipsum

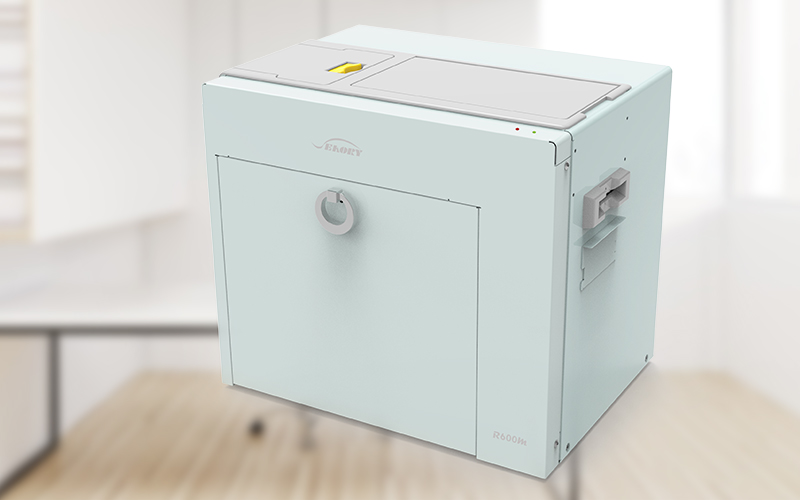

R600M Self-service Kiosk Retransfer Dual-sided Card Printer
Dye Sublimation retransfer card printer
Default printing resolution 600 dpi × 600 dpi
With red and green two-color indicator, 128MB memory

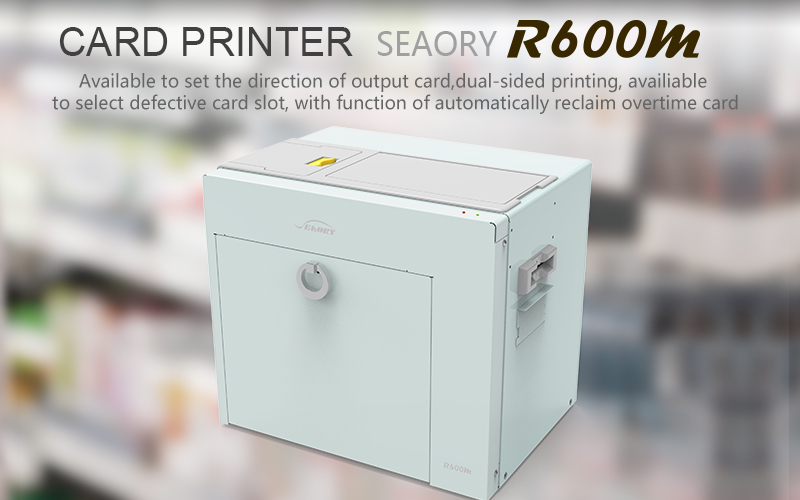

Available to set the direction of output card input&output, Availiable to select defective card slot, with function of automatically reclaim overtime card
Body size: 367mm × 262mm × 313mm，N.W: 19 kg
sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
High-quality, High-efficiency
Monochrome printing:15-18s per card(single-sided), 33-36s per card(dual-sided),using ribbon saving technology
Full-color YMCK Printing：25s per card(single-sided),42s per card(dual-sided)
Print dimension is ISO CR80(53.98mmx85.6mm) standard card
Defective card slot capacity is 25pcs cards(0.76mm)

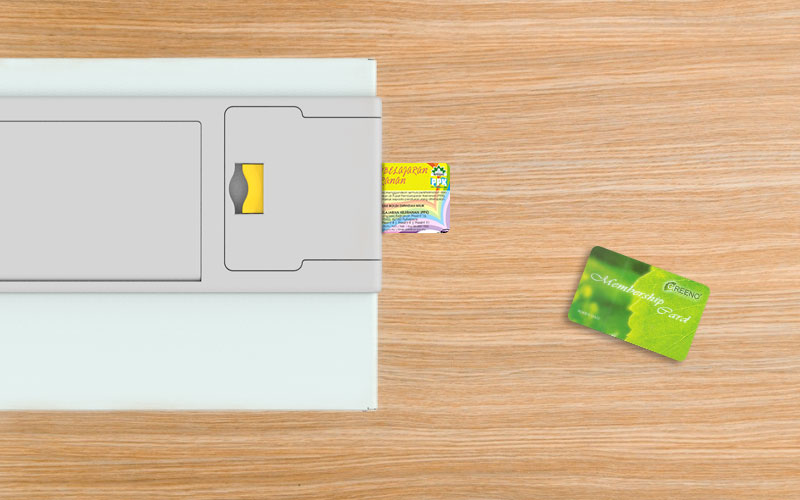

Perfectly realize edge-to-edge printing of the entire card
Creative design
Keep improving
Driver: support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016,Linux
Card design software: ICARDE, support Windows XP/7/8/10/11
Concise design, friendly operation, powerful function
Databases connection available, completely independent intellectual property rights
Designed for large quantity & low cost printing
1. Monochrome ribbon: 100m×60mm;
2. YMCK ribbon full panel : 500 / 1000 prints/roll;
3. YMCKK ribbon full panel: 500 prints/roll;
4. YMCKI ribbon full panel: 500 prints/roll;
5. YMCKHs ribbon full panel: 500 prints/roll;
6. Security YMCFK ribbon: 500 prints/roll;
7. Transparent retransfer film: 500 / 1000 prints/roll.
Variety of card encoding module
Magnetic stripe card encoding module: Support ISO7811 Hi-co/Low-co,support 1/2/3 tracks encoding
Dual interface chip card reading and writing module:
1.Support CPU card (ISO 7816, T=1 & T=0)
2. 4 SAM slots (same as SIM card size complied with GSM 11.11)
3. Support contactless CPU card (ISO14443 TYPE A/B),PC/SC
Contactless ID card encoding module : Support 125KHz (Specified chip type)
UHF Chip card encoding module: Support EPC C1 GEN2/ ISO 18000 -6C Air interface protocol standard
| Product Name: | R600M Self-service Kiosk Retransfer Dual-sided Card Printer |
| Print Method: | Dye Sublimation retransfer printing |
| Print resolution: | 600dpi × 600dpi |
| LCM Display: | Red and green two-color indicator |
| Memory: | 128MB |
| Print Speed: | Monochrome printing:15-18s per card(single-sided), 33-36s per card(dual-sided),using ribbon saving technology Full-color YMCK Printing：25s per card(single-sided),42s per card(dual-sided) |
| Card Size: | ISO CR80 (53.98mm×85.60mm) |
| Card Thickness: | 0.3-1.05mm (hopper adjustment required) |
| Card Material: | PVC, composite PVC, ABS, PET, PC and other materials |
| Input hopper capacity: | None |
| Output hopper capacity: | None |
| Dimensions: | 367mm × 262mm × 313mm |
| Weight: | 19Kg |
| Software: | Driver: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, and NeoKylin, Kylin, UOS and other made-in-China operating system. Development Kit: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, and NeoKylin, Kylin, UOS and other made-in-China Operating System Card Design Software: iCARDE card design software, support Windows XP/7/8/10 operating systems |
| Interfaces: | Standard USB2.0&Ethernet,WIFI(optional) |
| Power: | 100-240VAC，50/60Hz，4A |
| Operation Environment: | 1.Regular running temp.:15℃-30℃(59-86℉),20%-65%RH non-condensing. 2.Lowest/Highest running temp.:0℃(32℉)/40℃(104℉),20%-65%RH non-condensing. |
| Consumables: | 1. Monochrome ribbon: 100m×60mm; 2. YMCK ribbon full panel : 500 / 1000 prints/roll; 3. YMCKK ribbon full panel: 500 prints/roll; 4. YMCKI ribbon full panel: 500 prints/roll; 5. YMCKHs ribbon full panel: 500 prints/roll; 6. Security YMCFK ribbon: 500 prints/roll; 7. Transparent retransfer film: 500 / 1000 prints/roll. |
| Certificates: | CCC, FCC, CE, ROHS, UKCA |
| Optional modules: | 1. Dual interface chip card reading and writing module: Support (ISO 7816, T=1 & T=0), 4 SAM slots (same as SIM card size complied with GSM 11.11), Support contactless CPU card (ISO14443 TYPE A/B),PC/SC 2.Contactless ID card encoding module: Support read and write 125KHz RFID smart card (ATA5567, ATA5577, EM4469, EM4305, hitag-s and other common ID chip cards 3.UHF Chip card encoding module: Support EPC C1 GEN2/ ISO 18000 -6C Air interface protocol standard 4.Magnetic stripe card encoding module: Support ISO7811 Hi-co/Low-co, support 1/2/3 tracks encoding |
