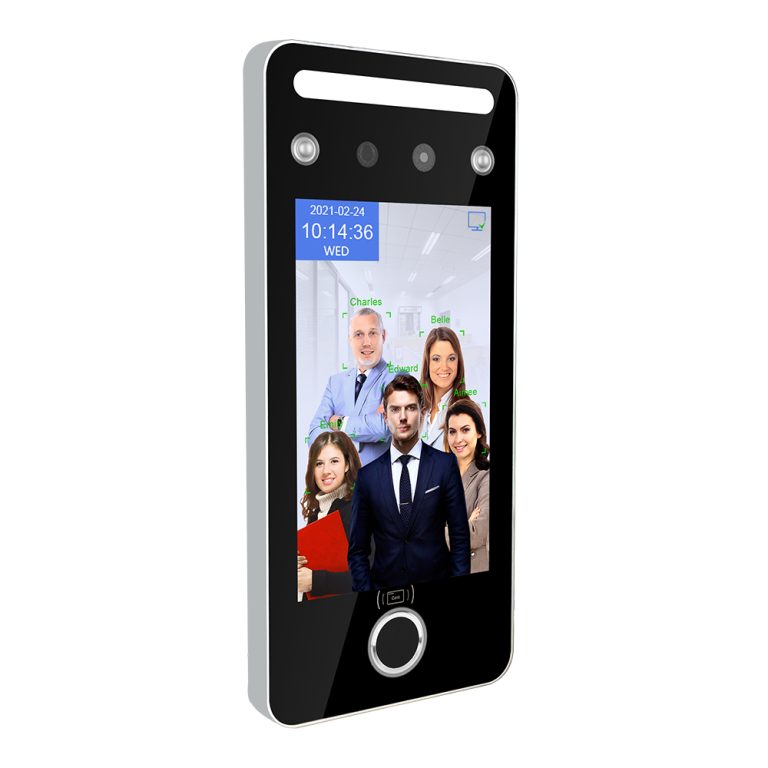

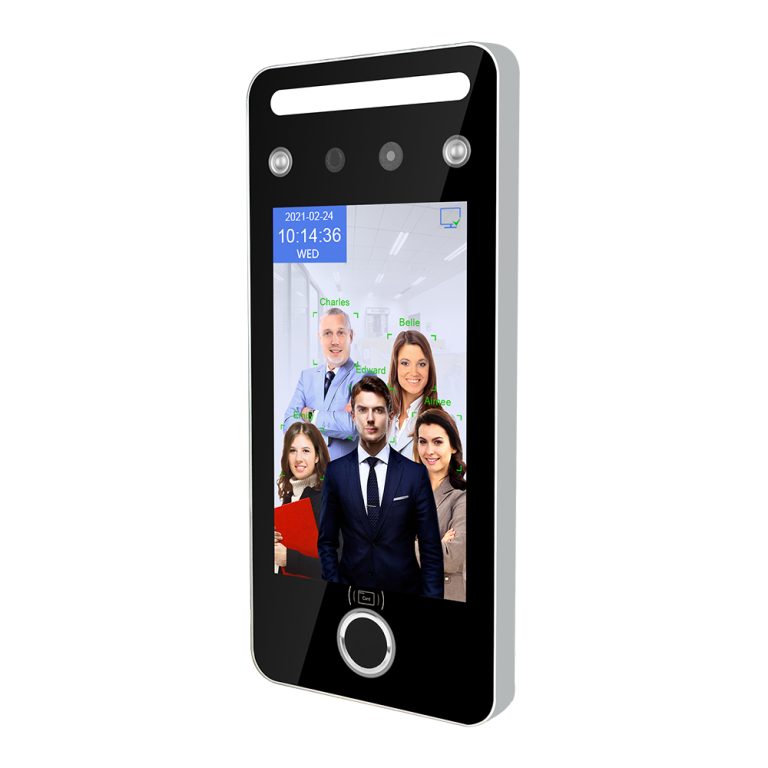

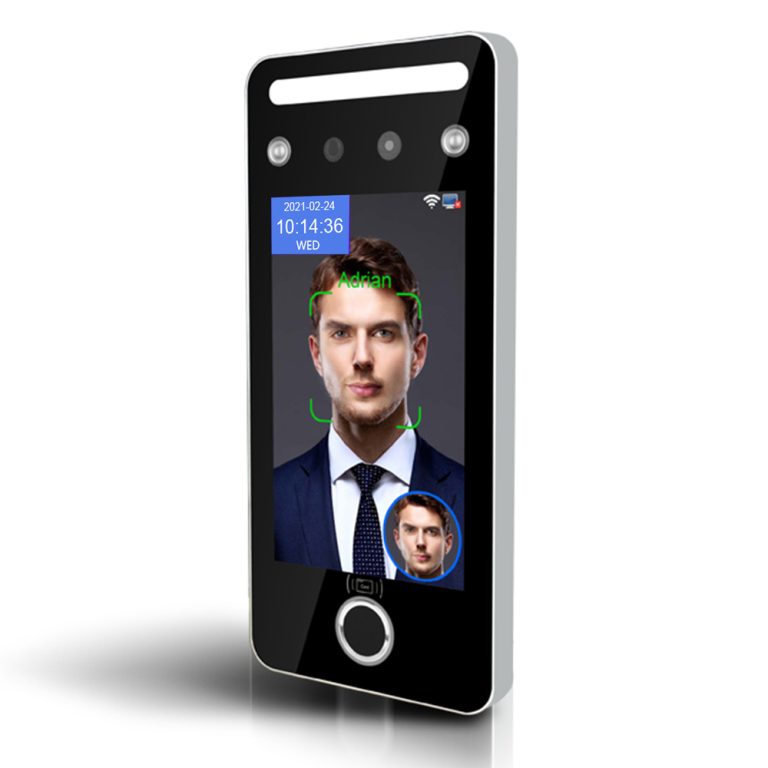

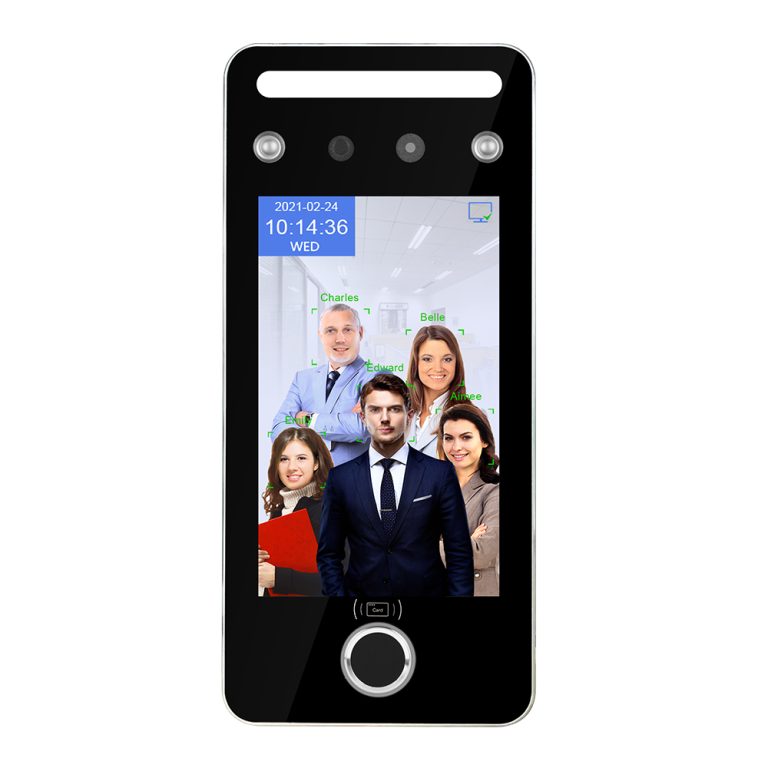

AI07F Dynamic Face & Fingerprint Recognition Terminal
Biometric Facial Recognition Access Control System Fingerprint Attendance Machine.
5 inch IPS Screen Biometric Face&Fingerprint Attendance System Door Access Control.
Biometric Face Recognition System Features:
1, Single User/5 User Face Recognition at same time.
2, Face Recognition detecting distance reaches 0.5-2.5m (Adjustable)
3, Large User Capacity with Standard 5000 (20,000 User Capacity Optional).
4. Fast Recognition speed of less than 0.2s
5. Supports mutiple identification methods including Face, Fingerprint, QR Code, RFID Card, Password
TM-AI07F can be widely installed at the entrance of Office, hospital, public buidling,etc. which is to control the attendance logs and access records of the people flow. It adopts new generation of AI platform and new face algorithm, it can support 5 person face recognition at same time, it can be more effective and save time.
TM-AI07F can connect to the software(both desktop software or web cloud software) through the communications of WIfi, TCP/IP( Ethernet), after setting configuaration on inputting network IP address, port number and series number. the device can automatically push data of attendance and logs to software in real time.





Product | AI Dynamic Face Recognition Time Attendance Access Control Terminal |
Screen | 5 Inch HD Capacitive Touch Screen, HD 1280*720 |
Operation system | Linux 3.10 |
CPU, NPU | 1.2G Dual-core ARM Cortex-A7, 600G (0.6T) |
RAM | 256MB DDR3L |
ROM | eMMC Flash 4GB |
Binocular camera | 2 Million Colorful WDR Camera + 2 Million infrared live camera |
Logs Capacity | 500000 |
Verification | Dynafnc face recognition, password; ID/IC card optional |
Face capaoty | 5000 (50000 optional) |
Fingerprint | 5000 (50000 optional) |
Card | 5000 (50000 optional) |
PIN Capacity | 5000 (50000 optional) |
QR code | Supported |
Face Recognition Distance | 0.5-2.5 meters (0.5-1.5 meters with live face recognition on) |
Recognition Speed | ≤2S |
Face Recognition Accuracy | 99.7% |
Prevent Photo | Dual camera anti-counterfeiting, prevent recognition with photo/video |
Principle of identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection tracking and recognition |
WDR | Wide dynamic range, support accurate face recogniton under strong light, dark light and back-light. Supports simultaneous recognition of up to 5 people, face tracking, face capture |
Power supply | DC12V 2A interface x1 |
Network Communication | TCP/IP, Support C/S LAN communication, USB; WIFI optional |
Free Attendance software | Support exporting excel attendance report with U disk |
Shift | Support shift setting and importing shift schedule with U disk |
Management Software | Standalone software,Cloud Software, Smart Phone APP |
Access Control | Door unlock alarm, force door opening alarm, alarm linkage and ouput, 1 door opening signal, 1 alarm signal, time permission control, connect external access control slave reader, wiegand 26/34 output |
Environmental | Working temperature: -15C to 45*C (storage temperature -40 to 65 degree) |
Adaptability | Working humidity: 20%-90% (storage humidity 20%- 90%) Dark enviroment: LED soft light automatic fill light (Autimatic control according to ambient light) |
Multi-languages | Support 20 national languages and voices including: English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc |
OR Code Scanner | Support |
Broadcase and ring | Support display name, voice broadcase name, builtin bell ring |
Working Voltage | DC12V; Standby current: 310mA; Working current: 520mA |
Device Dimension | 188 x 80 x 2mm |
